Prefabricated Substation E-House For Modular Power Distribution

Name: Prefabricated Substation EHouse For Modular Power Distribution
Brand: EUE Power
Price: 1 USD

China Prefabricated Substation E-House For Modular Power Distribution wholesale

Packaging Details : Different packaging methods are adopted according to different modes of transportation

Rated frequency : High Pressure：50/60Hz, Box: 50/60Hz

Place of Origin : China

Price : Negotiable

Box structure : Double-row triangular

Transformer Rated capacity : 30~1250kVA

Life time : Over 30 years

Brand Name : EUE Power

Payment Terms : L/C,T/T,DDP,DDU

Product Name : Prefabricated Substation

Rated voltage : High Pressure Part：12（6.3）kV, Low Pressure Part: 0.4kV

Rated current : High Pressure：630/1250A, Low Pressure Part:100~2500A

Contact Now

Prefabricated Substation (E-House) for Modular Power Distribution

Our Prefabricated Substation offers a space-saving, compact integrated design engineered for high efficiency. Designed for rapid deployment, it ensures fast installation and significantly shorter construction timelines. With factory pre-testing, it delivers high reliability, low maintenance requirements, and an extended service life of over 30 years, making it ideal for diverse outdoor environments.

Key Advantages

Compact Design: Space-saving integrated structure.
Rapid Deployment: Fast installation with reduced construction time.
High Reliability: Factory pre-tested for consistent performance.
Low Maintenance: Extended service life exceeding 30 years.
Versatility: Suitable for a wide range of outdoor applications.

Structure and Design Features

01

Enclosure/Body

The base of the YB-12 HV/LV prefabricated substation is fabricated from welded channel steel, treated for rust prevention and coated with anti-rust paint. The housing is constructed from eco-friendly composite panels, thin steel sheets, or aluminum alloy plates. The roof features an internal thermal insulation layer, with ventilation openings along the upper perimeter on all four sides.
02

Layout & Structure

The substation can be designed in a "目" (double-row) or "品" (triangular) layout based on design or power consumption requirements. It can also be customized as an eco-landscape type or standard type depending on the installation environment.
03

HV Room

Equipped with 10kV (6kV) high-voltage switchgear. Common configurations include standard SF6 load break switchgear or gas-insulated (GIS) SF6 load break switchgear. For applications with larger transformer capacities, vacuum circuit breaker switchgear can be installed.
04

Transformer Room

Can be configured with dry-type, oil-immersed, or special-purpose transformers. The room is equipped with ventilation and cooling devices on the roof. For oil-immersed transformers, an oil collection grid is provided at the bottom, along with a protective safety mesh.
05

LV Room

Houses fixed or withdrawable distribution cabinets. The substation includes a metering observation window for outdoor meter reading.

Performance Advantages

Fully integrated & pre-installed for efficient deployment.
Safe, reliable, and highly protective.
Compact structure with a space-saving footprint.
Energy-efficient, low-consumption, and cost-effective.

Product Photos

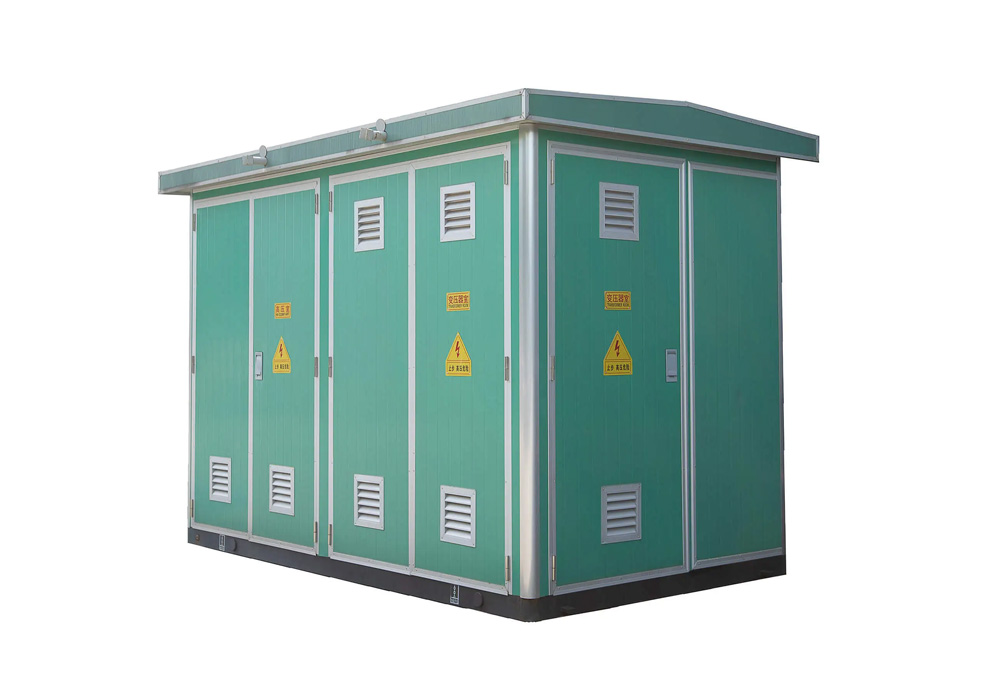

Prefabricated Substation E-House For Modular Power Distribution

Technical Parameters

Item	High Pressure Part	Transformer	Low Pressure Part	Box
Rated capacity		30~1250kVA
Rated voltage	12﹙6.3﹚kV	kV	0.4kV
Rated current	630/1250A		100~2500A
Rated frequency	50/60Hz			50/60Hz
Rated thermal stability current	20kA/3s 25kA/2s
Rated dynamic stability current	63kA		30~60kA
Insulation level	42kV/1min		2kV/1min
Box structure				double-row triangular
Protection level	IP3X		IP2X	IP4X
Life time	Over 30 years
